ISO/ CE/ TUV Approval 21% Efficiency 450W Clean Half Cell Solar
Panel For Industrial
21% Efficiency 450W 144 Cells Solar Energy Panel With 25 Years
Structural parameters :
1. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance.
2. Strictly quality control ensure the stability and reliability .
3. High cell efficiency with quality silicon materials for long
term output stability and reliability.
4. Excellent performance in harsh weather.
5. With advanced encapsulatiing material,laminated in totally
automatically machine by experienced technician.
Possessing high output power and high reliability, using the most
advanced manufacturing technology,
with lower operating temperature and excellent weak light effect,
which can effectively guarantee the power generation and investment
income of the power station
|Maximum Power at STC [Pmax]||450W|
|Open Circuit Voltage [Voc]||50V|
|Short Circuit Current [Isc]||11.47A|
|Voltage at Maximum Power Point [Vm]||41.4V|
|Current at Maximum Power Point [Im]||10.97A|
|Maximum Power at NOCT [Pmax]||333.6W|
|Open Circuit Voltage [Voc]||42.7V|
|Short Circuit Current [Isc]||8.73A|
|Voltage at Maximum Power Point [Vm]||38.3V|
|Current at Maximum Power Point [Im]||8.73A|
|Values at Standard Test Conditions STC||Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃|
|NOCT||Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s|
--High Efficiency Pv Cells
--Color sorting ensure consistent appearance on each module
--Service life is as long as 25 years
--Translucency of normal luminosity is increased by 2%

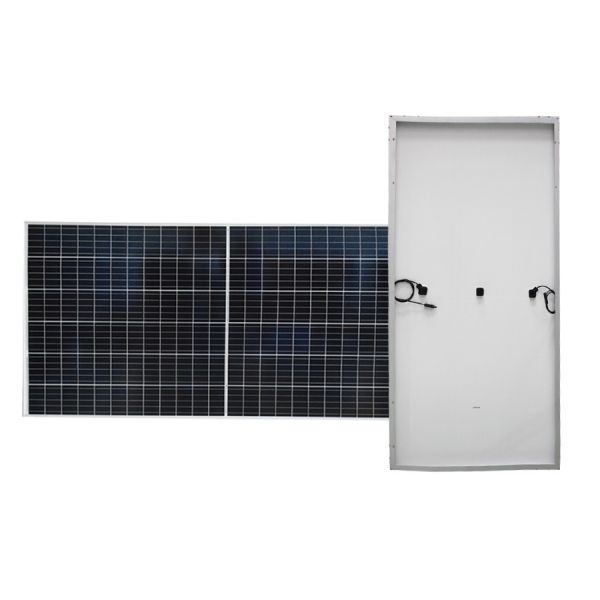

Photos of panel:
--Boost bearing capability and prolong service life
--Serrated-clip design tensile strength
--Seal-lip design glue injection
--Long service life
-- IP67 protection level
--Conventional standalone edition and engineering custom edition
--Quality diode ensures module running safety
1. The Junction Box is mounted on the Back! So it's not suitable to
be glued on the roof of the vehicle.
2. Do not have the positive and negative anodes of the alligator
clip to touch or connect to each other, or it will cause short
circuit and burning
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for
many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to
different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting
system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and
whole life technical support.
A:All of our products are produced by our own factory. So the price
is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only
need to connect solar panel with controller, and push ON/OFF
button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you
with 24 hours better pre-sale.
