Polycrystalline Solar Panel

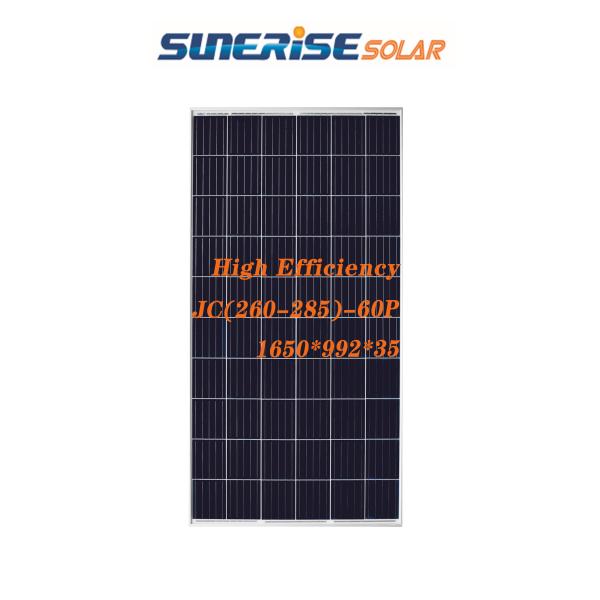

60 Cells Polycrystalline Solar Panel
|Maximum Power at STC [Pmax]||285|
|Open Circuit Voltage [Voc]||38.30|
|Short Circuit Current [Isc]||9.64|
|Voltage at Maximum Power Point [Vm]||31.43|
|Current at Maximum Power Point [Im]||9.07|
|Maximum Power at NOCT [Pmax]||207.09|
|Open Circuit Voltage [Voc]||35.26|
|Short Circuit Current [Isc]||7.83|
|Voltage at Maximum Power Point [Vm]||28.46|
|Current at Maximum Power Point [Im]||7.26|
|Values at Standard Test Conditions STC||Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃|
|NOCT||Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s|
1.The products are light weight, high efficiency,easy to install.
2. High transmittance low iron tempered glass with enhanced
stiffness and impact resistance.
3:Strictly quality control ensure the stability and reliability.
Ensure Colour and Power Difference.
1.Ensure high yields,consistent performance and durability.
Defects Objective Before Shipment.
2.Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
1.The Junction Box is mounted on the Back! So it's not suitable to
be glued on the roof of the vehicle.
2.DO NOT have the positive and negative anodes of the alligator
clip to touch or connect to each other, or it will cause short
circuit and burning.
3.Don't place the junction box side under heavy rain coz it`s only
1.High efficiency photovoltaic cell
2.Color sorting ensures that each module looks the same
1.The main function is to protect and support the glass and its own
3.The frame is hard, strong and has a long service life
1.Ultra white, high permeability, low iron
2.It can effectively resist severe weather such as hail
3.The service life is more than 20 years
1.Anodizing to prevent radiation
2.Increase sealing performance and increase service life
1.The main function is to export the collected current through the
2.The function of the diode inside is to decompose heat and prevent
