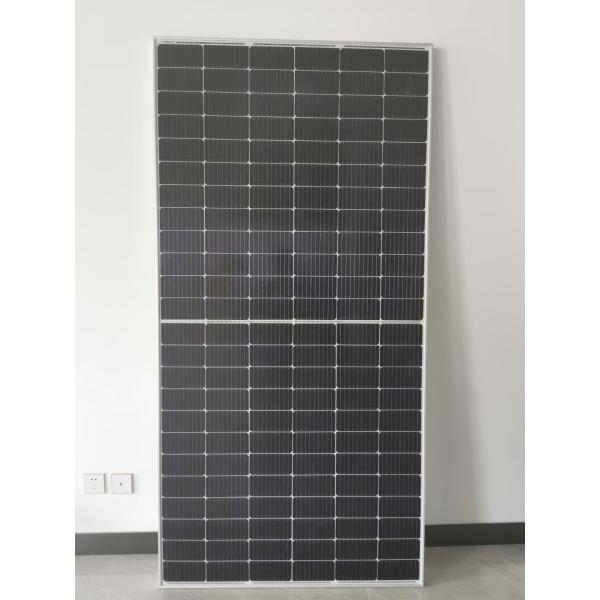

450Watt 144 M6 Cells Solar PV Module

  • 1
  • 2

Brand Name : SUNERISE

Model Number : JC450-144M

Certification : TUV,CQC,CE,IAF,CNAS,ISO etc

Place of Origin : Hefei,Anhui, China

MOQ : 31pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1MW,1Month

Delivery Time : 10-15 days

Packaging Details : 31pcs/pallet

Size : 2094*1038*35mm

Cell Type : 166*83mm*144pcs

Efficiency : 21%

Power : 450W+ 0~5W

Cable : 4.0mm2,900mm

Waterproof Grade : IP68

Contact Now

450Watt 144 M6 Cells Solar PV Module


Monocrystalline Solar Panel

450Watt 144 M6 Cells Solar PV Module

Features:

Long service life .

High efficiency solar cells .

Special aluminum frame design.

High transmission ,low iron tempered glass.

Advanced cell encapsulation

ELECTRICAL DATA(STC)
Peak Power Watts-Pmax(Wp)430W435W440W445W450W
Power Output Tolerance-P MAX (W)0~+5W
Maximum Power Voltage-V MPP (V)38.238.538.939.239.6
Maximum Power Current-l MPP (A)11.2511.3011.3111.3511.36
Open Circuit Voltage-VOC (V)46.9847.3547.8548.2148.71
Short Circuit Current-l SC (A)12.0412.0912.1012.1512.16
Module Efficiencyηm (%)19.419.619.820.120.3
STCIrradiance 1000w/m2,module temperature 25℃,air mass 1.5

TEMPERATURE RATINGS
Nominal Operating Cell Temperature (NOCT)44℃(±2℃)
Temperature Coefficient of PMAX- 0.39%/℃
Temperature Coefficient of VOC- 0.29%/℃
Temperature Coefficient of ISC0.05%/℃

MECHANICAL DATA
Solar cells9BB Monocrystalline 166×166mm
Cell orientation144cells (6×24)
Module dimensions2094×1038×35mm
Weight26kgs
Glass3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass
FrameSilver anodized alunnium alloy
BacksheetWhite
J-BoxIP67 rated (3 or 6 diodes)
CablesPhotovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches)
ConnectorMC4 or MC4 Compatible

Product details

1. Solar panels use high-performance monocrystalline solar cells, which are 21% more efficient than polycrystalline in bright weather, have a long service life, and almost no maintenance.
2. Anodized aluminum frame, toughened glass, and sealed junction box make the solar panel corrosion-resistant, weather-proof, and better outdoor performance.
3. The industrial standard solar panel size is 2094*1038*35mm.
4. It can be installed directly, and the pre-drilled hole is compatible with common ground installation, Z-bracket, side pole installation and inclined installation.
5. We will provide you with satisfactory solutions to any problems. Our support team is ready for you.

Manufacturing Technique



FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What certifications do you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where are your products applicable?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:What about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:How about yourice

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
