Brand Name : SUNERISE
Model Number : JC375-72M
Certification : TUV , CQC , CE , ISO etc
Place of Origin : Hefei,China
MOQ : 270pcs
Price : Negotiable
Payment Terms : T/T, L/C, Western Union
Supply Ability : 1MW,1Month
Delivery Time : 10 work days
Packaging Details : Packed in cartons with 30 pieces per pallet
Solar Cell : Mono Type cell 156*156mm
Number Of Cells : 72 PCS
Power Range : 375W
Size : 1956*992*35mm
Weight : 21.5KG
Waterproof Grade : IP 68
Warranty : 25 years for electricity
Payment : T / T , L / C
Monocrystalline Solar Panel

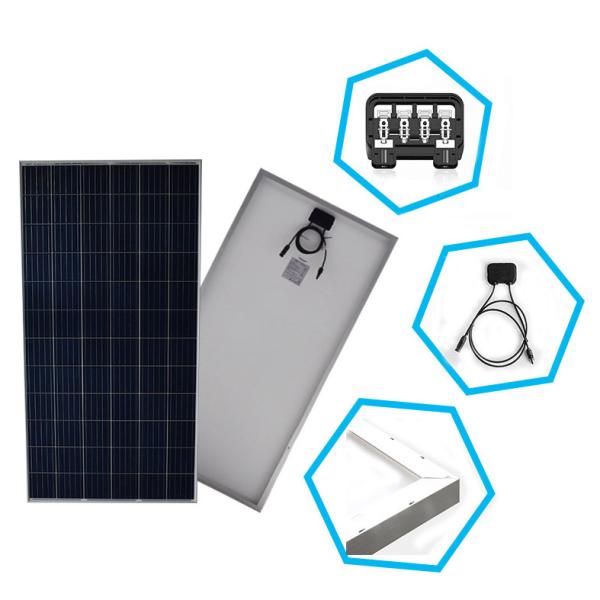

Home IP68 Waterproof 375W Monocrystalline Module for industrial use
| Maximum Power at STC [Pmax] | 375 |
| Open Circuit Voltage [Voc] | 48.7 |
| Short Circuit Current [Isc] | 9.38 |
| Voltage at Maximum Power Point [Vm] | 40.2 |
| Current at Maximum Power Point [Im] | 9.33 |
| Power Tolerance | 0~+5W |
| Module Efficiency | 19.33 |
| Maximum Power at NOCT [Pmax] | 282 |
| Open Circuit Voltage [Voc] | 47.2 |
| Short Circuit Current [Isc] | 7.82 |
| Voltage at Maximum Power Point [Vm] | 38.3 |
| Current at Maximum Power Point [Im] | 7.36 |
| Values at Standard Test Conditions STC | Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
| NOCT | Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |
Product details
1. Safe to use with long service life . Environmental protection solar energy.
2. Strictly quality control ensure the stability and reliability .
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
Manufacturing Technique
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Solar Cells
* High Efficiency PV Cells, Anti-Pid
* Appearance Consistency
Frame&Backsheet
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
Solar Juction Box
* IP68 Waterproof, Closed
* 4mm², 6mm ²Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealability
PV Connector
* 4mm² Qualified cable with PV Connector
* 500N Tensile Strength
Our service
1. All your inquiry,we reply whitin 12 Hours.
2: Fast produce and delivery to our world customers.
3: Offer customer the lowest price with good quality.
FAQ:
Dear friends,
Thanks for shopping from us.
We will deliver the goods within five to eight working days after you pay, and then inform you to track the delivery order number.The package will arrive in your country in 35 days.If you don't receive the goods within 80 days, we will give you a full refund or resend the goods.If you have any questions, please contact us before you raise a dispute.We will try our best to solve your problems and provide you with the best after-sales service.Your satisfaction and feedback are very important to us.
I hope you enjoy your shopping in our shop.
|
